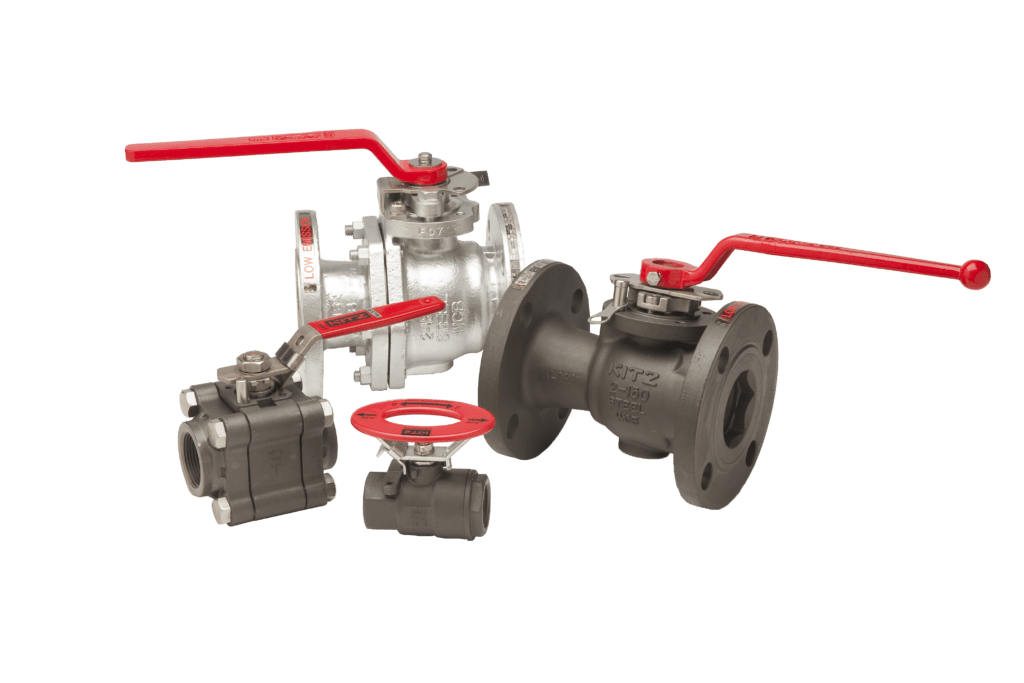

KITZ carbon steel ball valves are an industry leader in low fugitive emissions.

KITZ closely controls its manufacturing process to ensure that quality is guaranteed in every valve. All flanged floating ball valves are certified in accordance with API 641. Standard features include ISO 5211 mounting pads, live-loaded packing, self-relieving seats and some of the lowest repeatable operating torques in the industry. 100% of our valves are tested in accordance with API 598 prior to shipment. Soft seated valves are rated Bubbletight and our metal and graphite seated valves meet FCI 70-2 Class VI shutoff. Our standard temperature range is -20F to +932F. Flanged Class ratings are to ASME Class 600, threaded to ASME Class 2500.

Full Bore

150SCTDZM - Class 150

150SCTDZM-FS - Class 150, Firesafe (API-607)

300SCTDZM - Class 300

300SCTDZM-FS - Class 300, Firesafe (API-607)

A600F-F14AN-CS/316-FSM - Class 600, Firesafe (API-607)

150SCTDZ5HM - Class 150 - 572˚F

300SCTDZ5HM - Class 300 - 572˚F

150SCTDZ6HM - Class 150 - 932˚F

300SCTDZ6HM - Class 300 - 932˚F

150SCTDZ3HM - Class 150 - 932˚F

300SCTDZ3HM - Class 300 - 932˚F

317F (1/4 - 1 1/2) - 3 Piece, 1500 WOG

317F (2) - 3 Piece, 1000WOG

319F (1/4 - 1 1/2) - 3 Piece, 1500WOG, Firesafe (API-607)

319F (2) - 3 Piece, 1000WOG, Firesafe (API-607)

3KW19F - Class 1500, 3000WOG

6KW19F - Class 2500, 6000WOG

317FS (1/4 - 1 1/2) - 3 Piece, 1500 WOG

317FS (2) - 3 Piece, 1000WOG

319FS (1/4 - 1 1/2) - 3 Piece, 1500WOG, Firesafe (API-607)

319FS (2) - 3 Piece, 1000WOG, Firesafe (API-607)

3KW19FS - Class 1500, 3000WOG

s6KW19F - Class 2500, 6000WOG

Reduced Bore

150SCTAZM - Class 150

150SCTAZM-FS - Class 150, Firesafe (API-607)

300SCTAZM - Class 300

300SCTAZM-FS - Class 300, Firesafe (API-607)- Class 300, Firesafe (API-607)

49M- 2-Piece, Mounting Pad, 2000 PSI (1/4″-1″) 1500 PSI (11/4″-2″)

217 - 2-Piece, NACE, 2000 PSI (1/4″-1″) 1500 PSI (11/4″-2″)

219 - 2-Piece, Firesafe (API 607), NACE, 2000 PSI (1/4″-1″) 1500 PSI (11/4″-2″)

237 - 2-Piece, Seal Welded, NACE, 2000 PSI (1/4″-1″) 1500 PSI (11/4″-2″)

239 - 2-Piece, Seal Welded, Firesafe (API 607), NACE, 2000 PSI (1/4″-1″) 1500 PSI (11/4″-2″)

317 (1/2 - 2) - 3 Piece, 1500 WOG

317 (2-1/2) - 3 Piece, 1000 WOG

319 (1/2 - 2) - 3 Piece, 1500WOG, Firesafe(API 607)

319 (2-1/2) - 3 Piece, 1000WOG, Firesafe(API 607)

50 - 1- Piece, 600 WOG , Double Reduced Bore

119 - 1 Piece, 2000 WOG, Double Reduced Bore

317S (1/2 - 2) - 3 Piece, 1500 WOG

317S (2 1/2) - 3 Piece, 1000WOG

319S (1/2 - 2) - 3 Piece, 1500WOG, Firesafe (API-607)

319S (2 1/2) - 3 Piece, 1000WOG, Firesafe (API-607)
